Bronze Double Clad Door System

Bronze Clad doors are designed with a bead detail to complement our casements. Available as French doors or single openers, the clad door system provides improved thermal performance over our Solid Bronze doors. Primarily for use as an exterior door, a substantial frame, bronzed ironmongery and multipoint locking offer good levels of security and an imposing entrance to your property.

System Features

Traditional Bronze Beading
Double Glazing (18mm)
Thermally Broken Doors
Outwards Opening
Inwards Opening
single and Double Openers
Flush Reveal Fitting
Curved or Angled Head
Glazing Bars to match windows
Used as Internal/External Screen
Multipoint locking system

System Drawing

Click images to enlarge

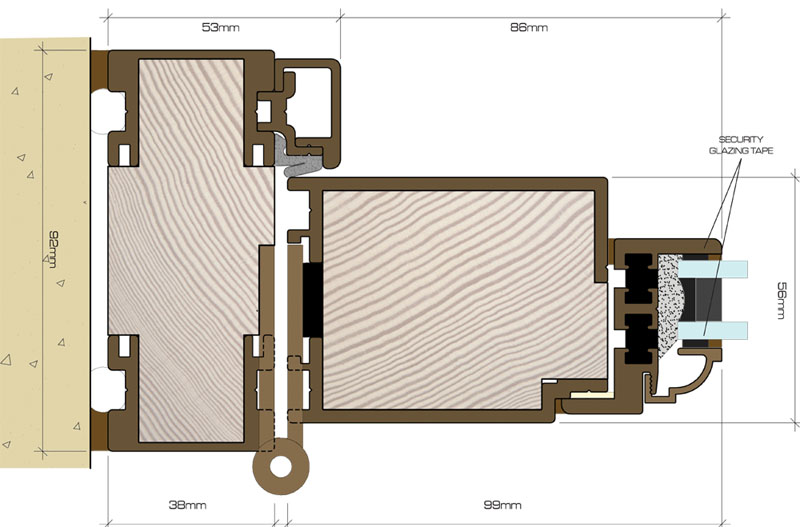

Section through bronze double clad door system

Recommended Design Limits

Single Door

Max O/a Width 1085mm (1000mm Door leaf)
Min O/A Width 685mm (600mm Door leaf)
Max O/A Height 2579mm (2500mm Door leaf)

Double Doors

Max O/a Width 1792mm (850mm Door leaf)
Min O/A Width 1092mm (500mm Door leaf)
Max O/A Height 2579mm (2500mm Door leaf)

The inclusion of glazing bars, opaque glazing and/or abutment details may alter performance data and design limits. Please contact our sales team to discuss any requirements outside of the standard size limits detailed above.

U-Value

U-value performance based on an 18mm sealed double glazed unit made up of 4mm tough/10mm 90% Krypton filled cavity/4mm tough Planitherm total + with warm edge spacers.

Single door overall value 2.1W/m2K
Double door overall value 2.3W/m2K
Centre pane value 1.1W/m2K

When incorporating a genuine Georgian bar add 0.4 to the U-value.

U-values calculated in accordance with BS EN iso 10077-1:2006. Worst case system value 3.6W/m2K based upon double doors including with glazing bars dependant on configuration.

Part Q Security

Below test carried out on pair of doors measuring maximum 1792mm x 2579mm

Outward opening pair of doors with or without sidelights, featuring standard iron mongery Pass

Information from Bronze Double Clad Door System Data Sheet

Version: BR-IS33 RevG
